StoneAge Warthog · Warthog WHR Magnum

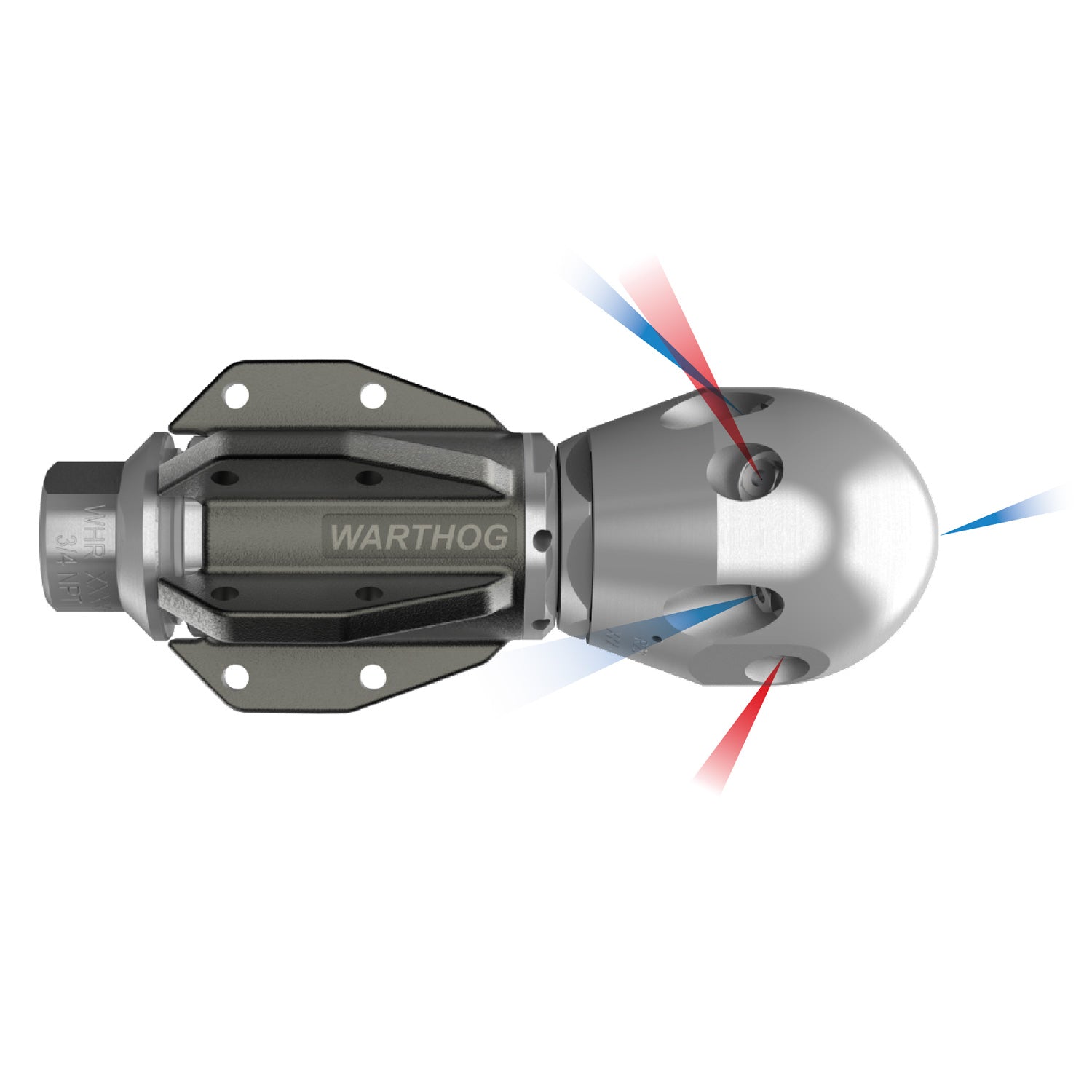

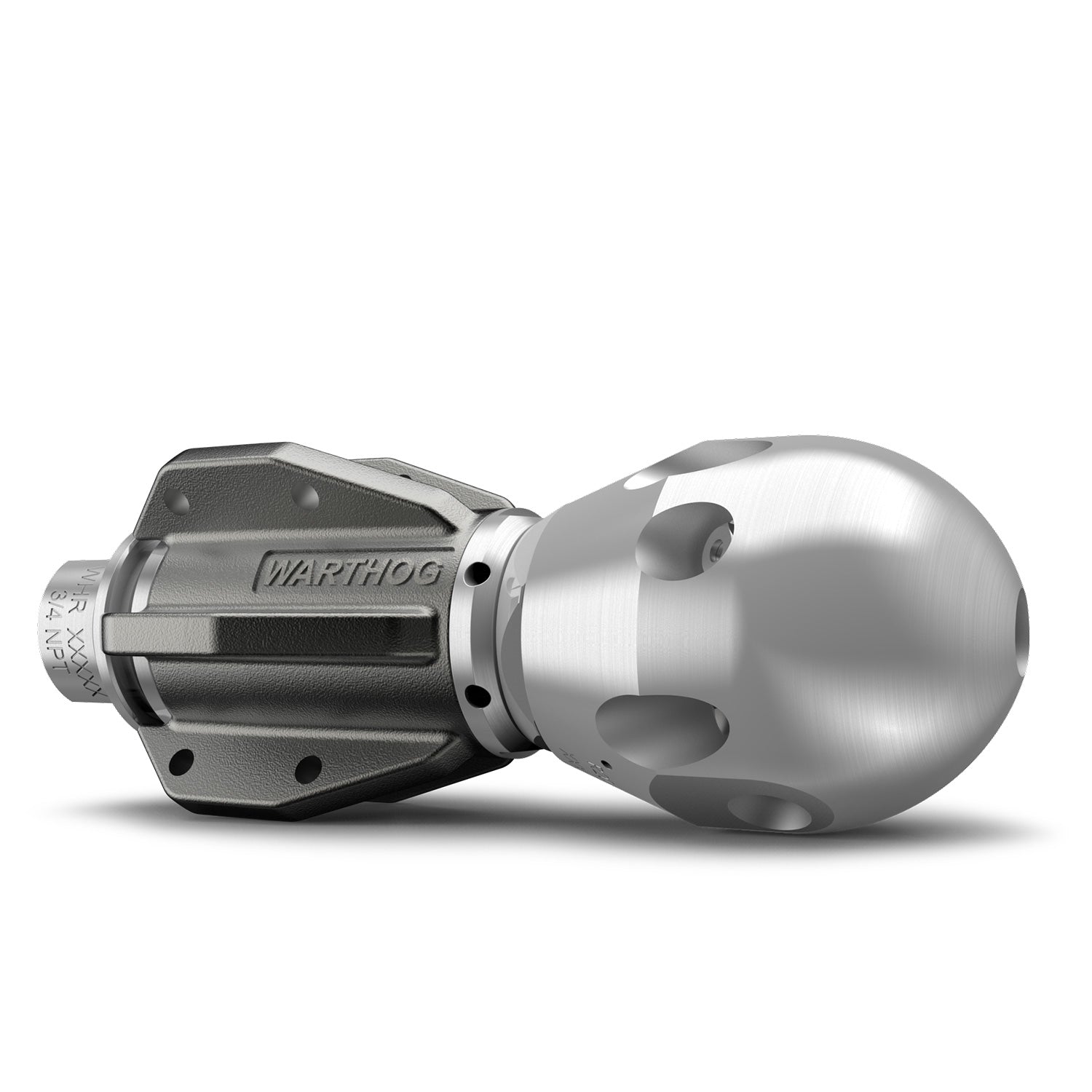

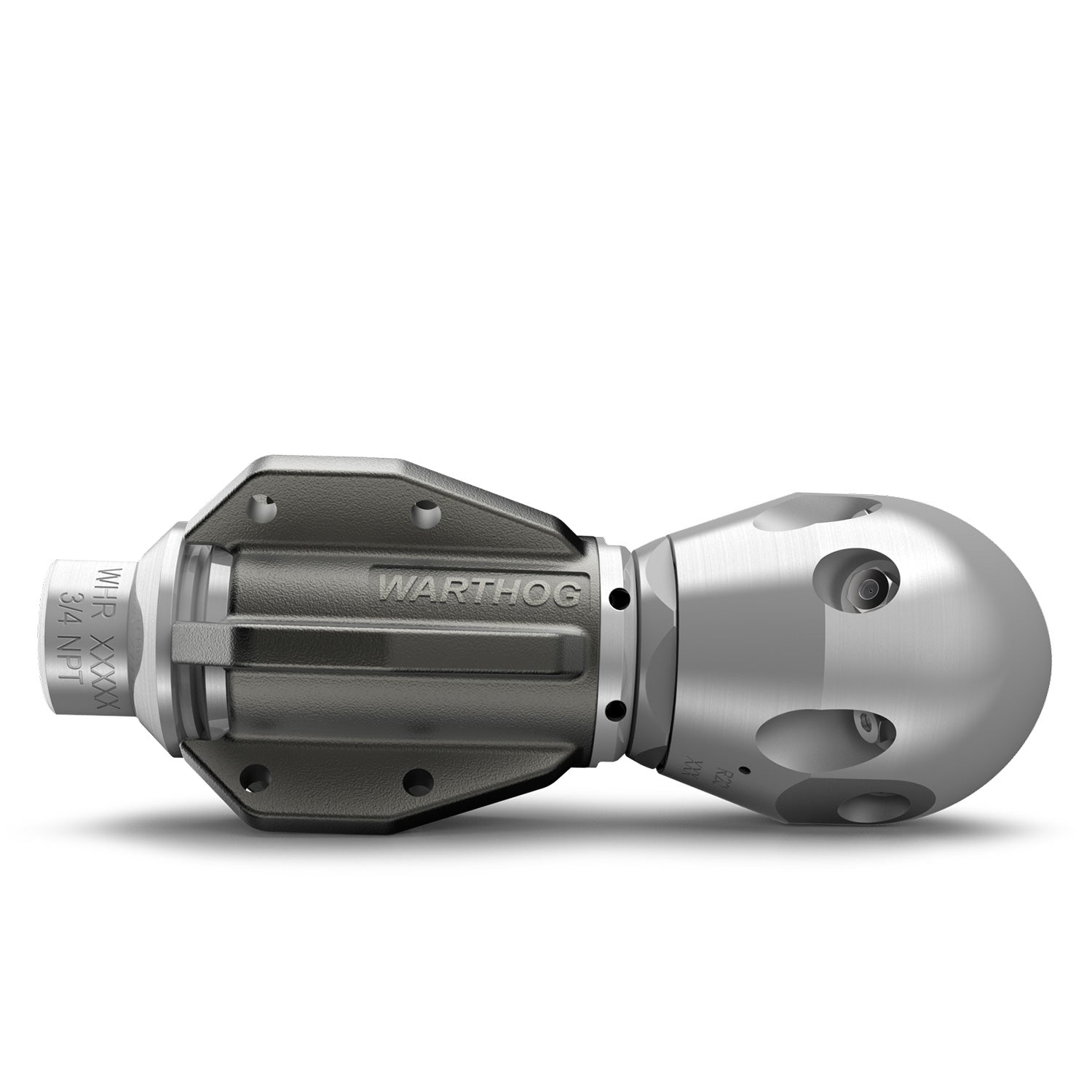

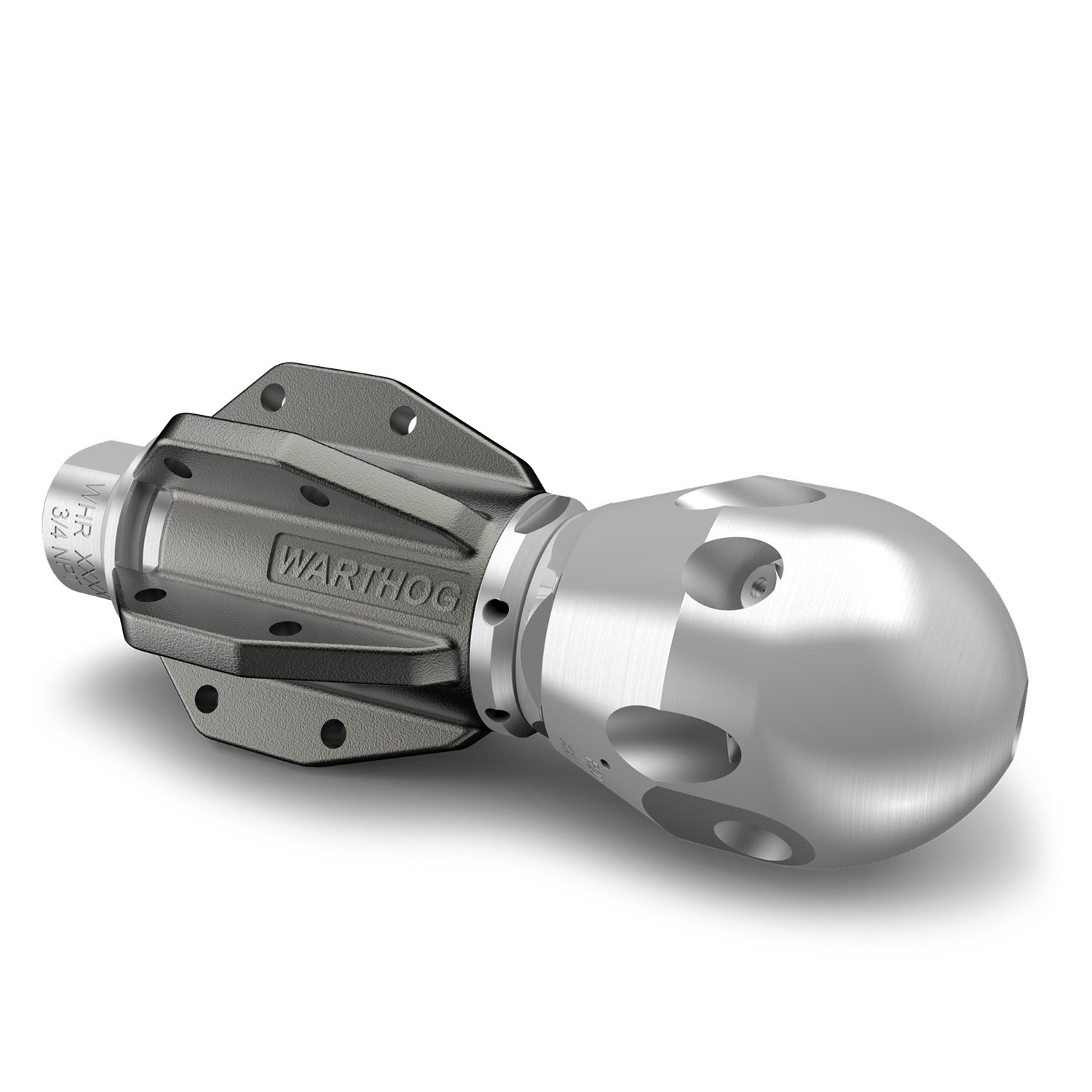

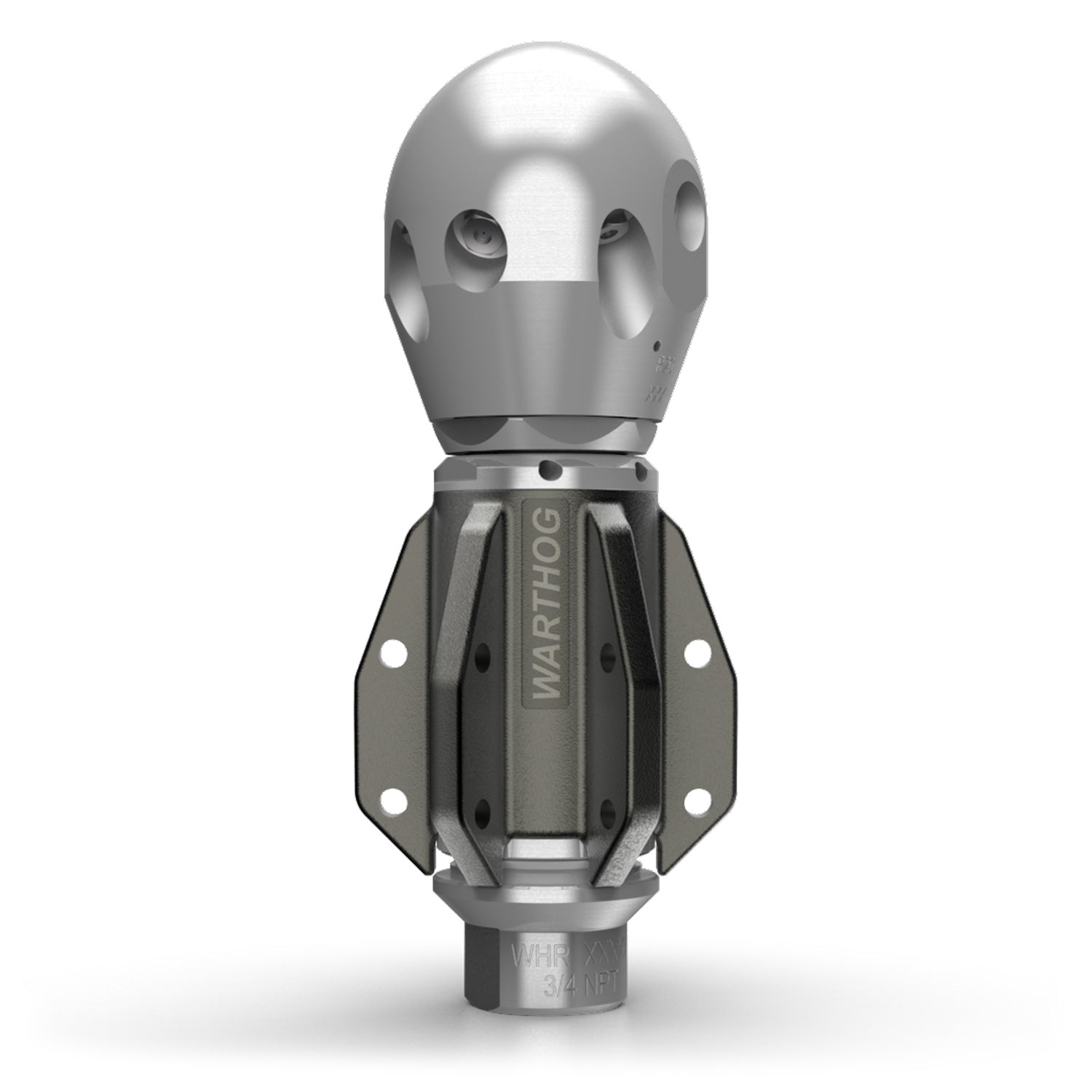

WHR Magnum Hybrid Switcher 1"

WHR Magnum Hybrid Switcher 1"

Price on request

Contact us to confirm pricing and the compatible Magnum configuration before ordering.

Contact us for a quote
Expert fit support Questions about GPM, PSI, drill pattern, or inlet?
Ask before ordering

Product details

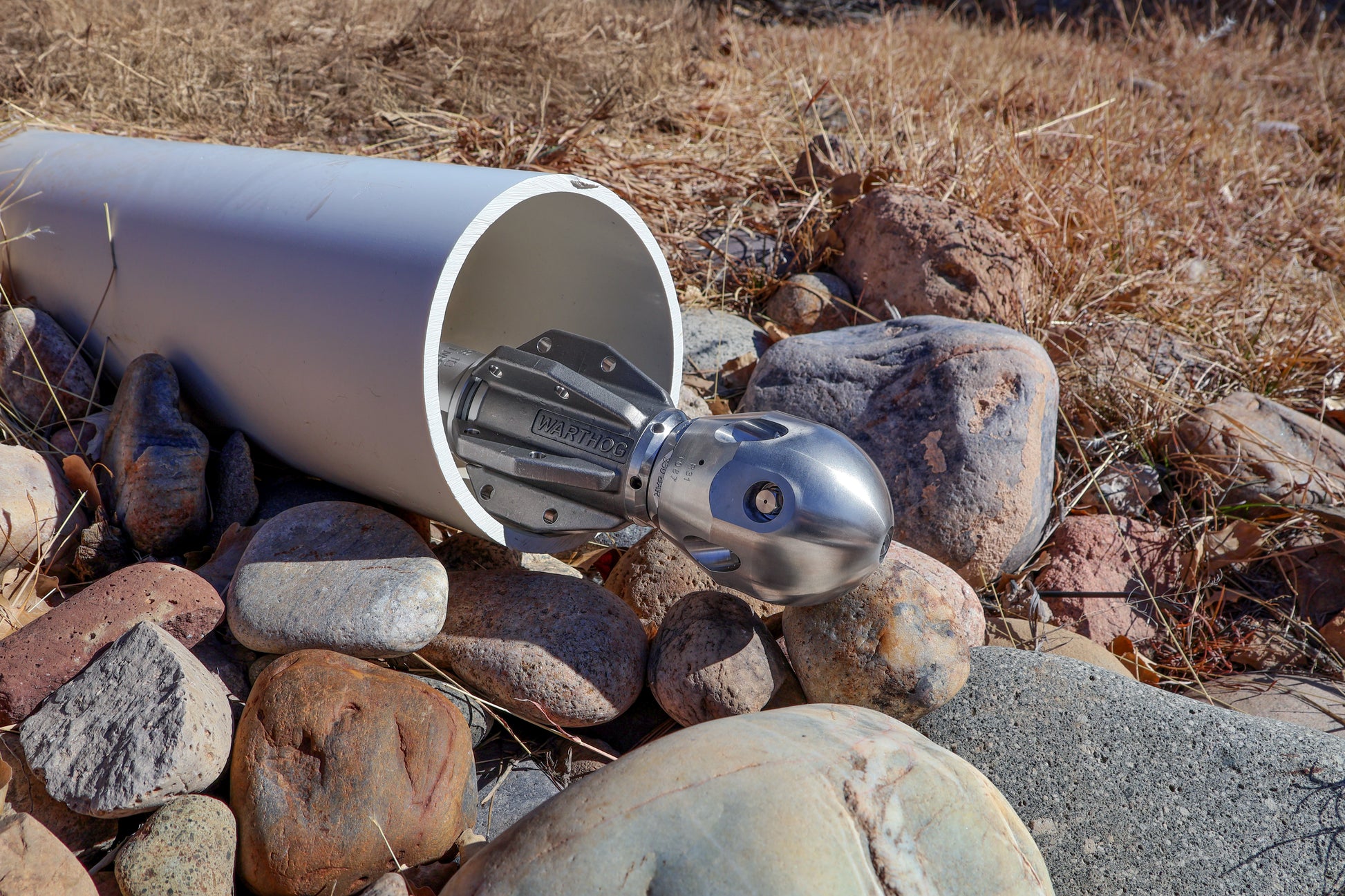

The WHR Magnum is designed to penetrate tough deposits in 6-18" lines and is often used with combination trucks and large trailer jetters.

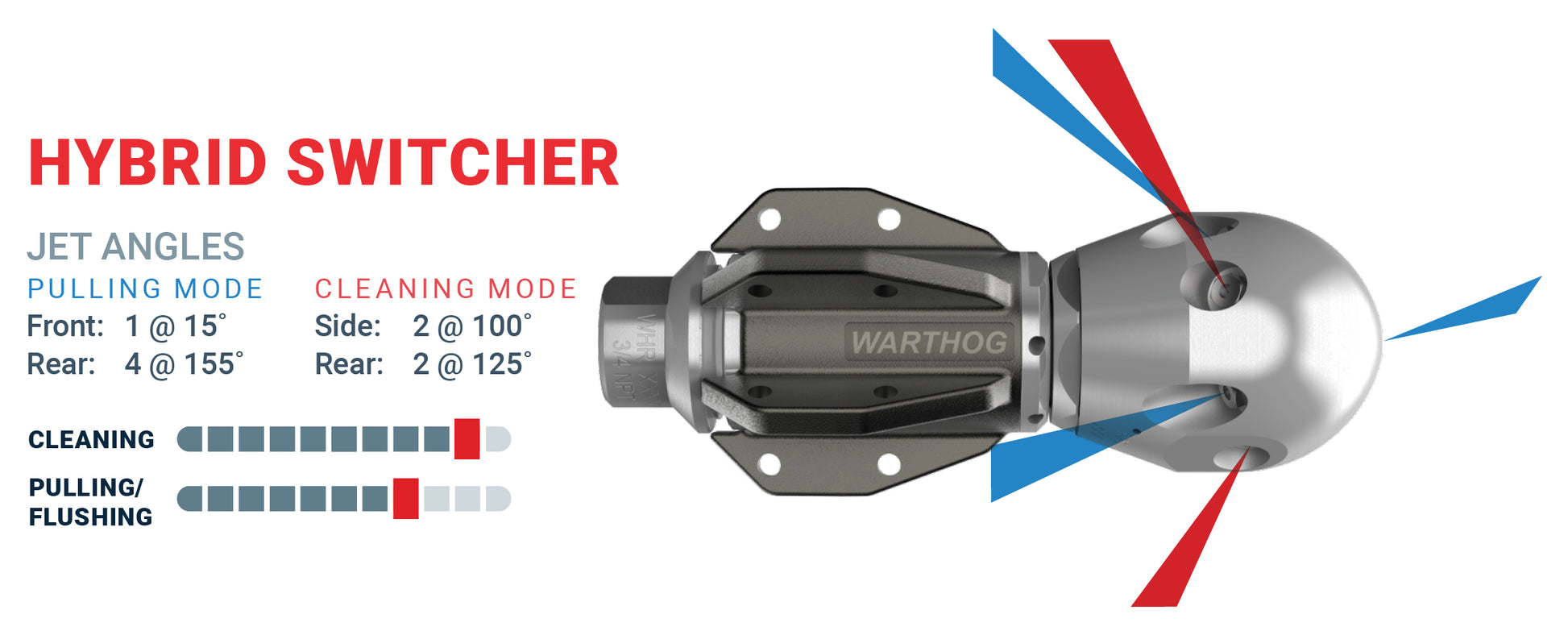

Like two tools in one, this Switcher model allows full flow to be sent to cleaning jets OR towards pulling and flushing - all while the tool remains in the pipe. Operators can turn on the pulling jets to run down the pipe, then switch to descaling jets to clean and unplug, completing jobs with half the runs and less water, time, and money.

Features

  • The only nozzle of its kind in the industry
  • Switches water between pulling and cleaning jets
  • Engineered to handle recycled water
  • Access ports enable viscous fluid change without disassembly for easy field maintenance
  • Tool profile keeps seals protected and prevents hang-ups
  • 1" inlet option allows for higher flow
  • 6-fin unibody design allows steeper rear jets for max pulling/flushing
  • Extended service life for up to 1600 hours without maintenance

Product Specifications

Pressure Range           1200-5000 psi / 85-345 bar
Flow Range                 20-50 gpm / 76-190 l/min
Length                         7.3 in. / 180 mm
Inlet Connection         3/4" NPT (P12), 3/4" BSPP (BSPP12)
Pipe Size                     6-18 in. / 150-450 mm
Nozzle Type                CNP2
Diameter                     3.6 in. / 92 mm
Weight                        6.8 lb / 3 kg
Head Type                  Switcher
Max Pressure              5000 psi / 345 bar
Recycled Water           Yes
Service Interval           1600 hr
