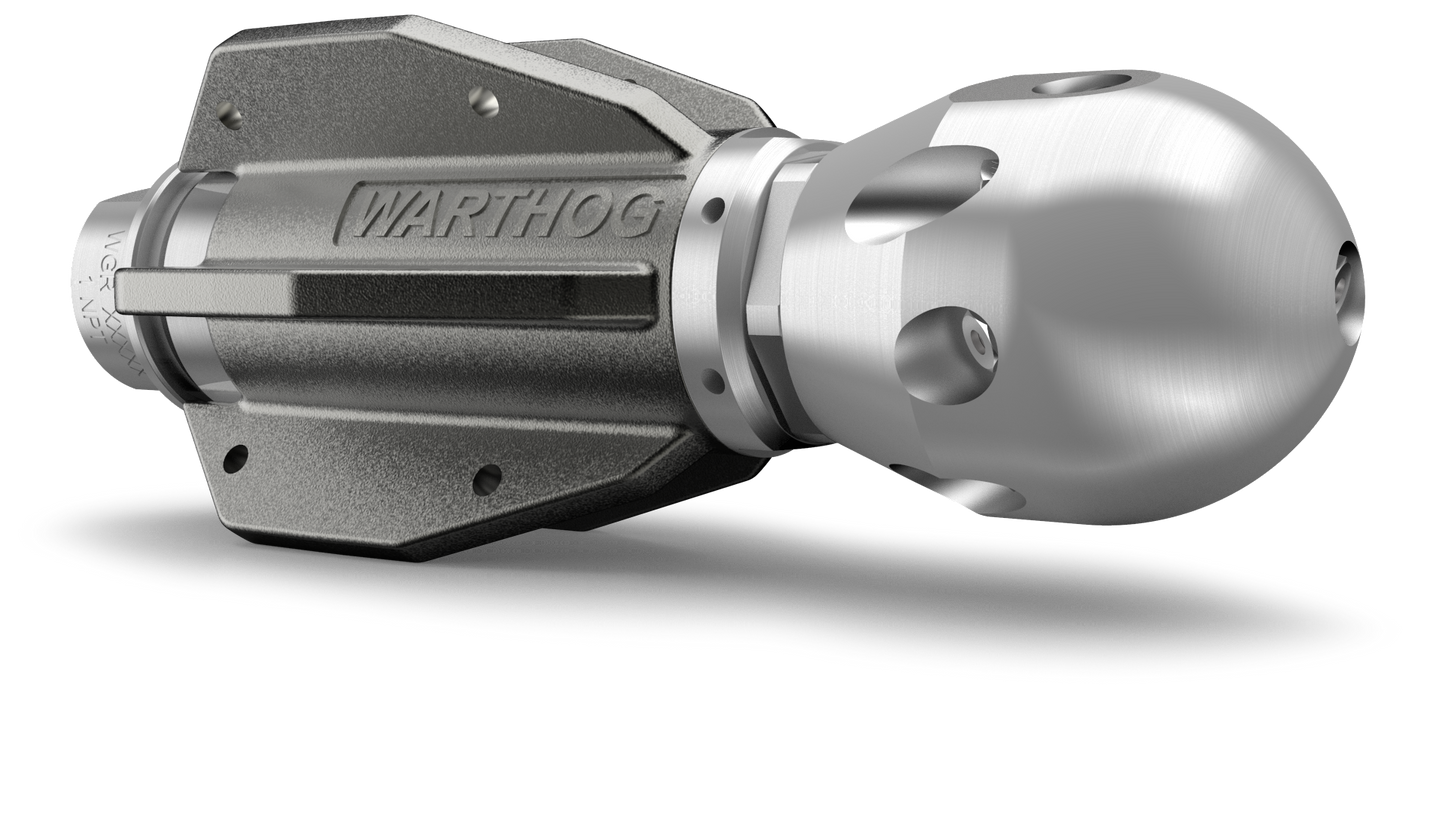

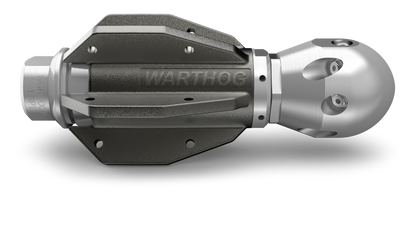

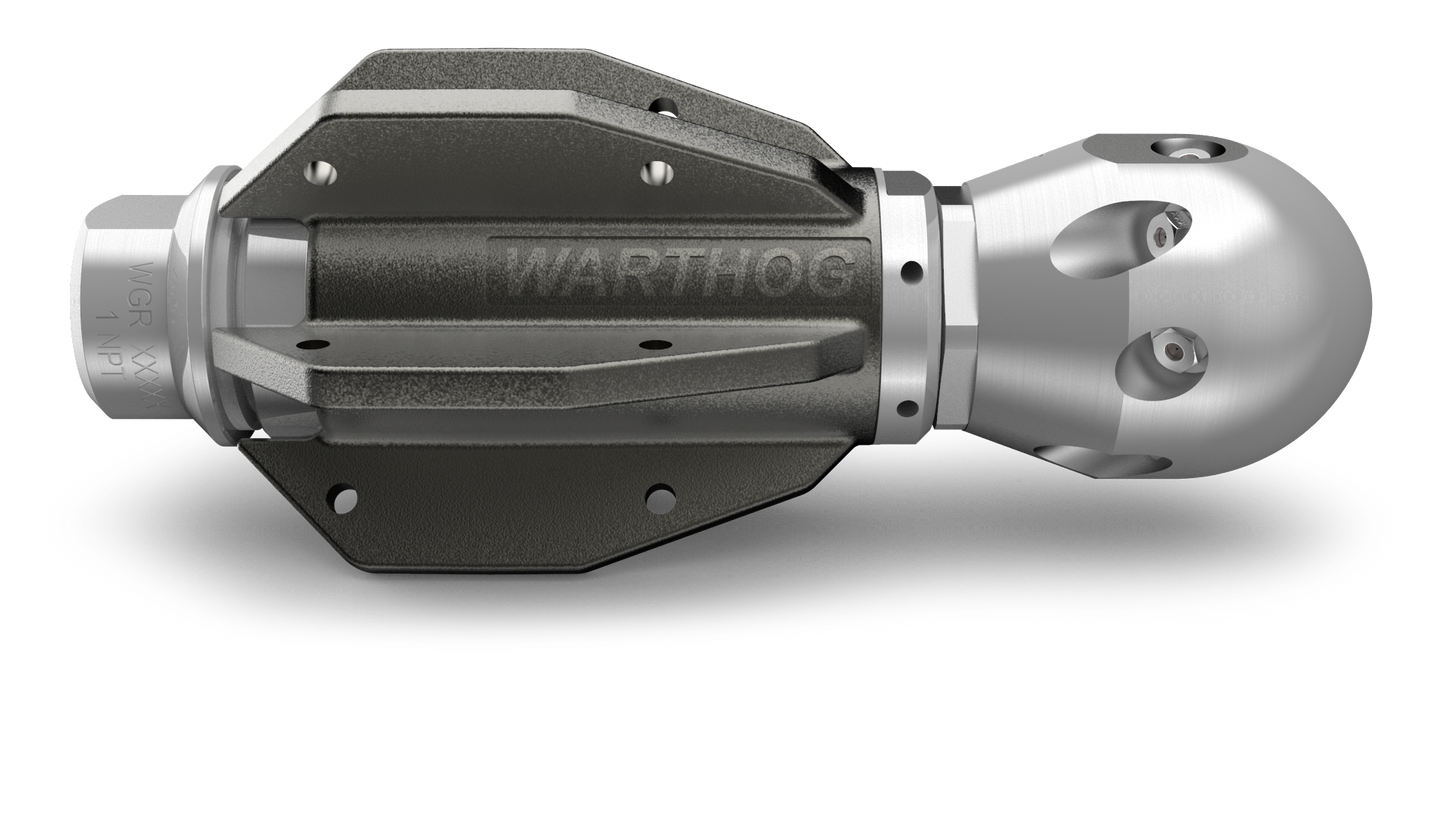

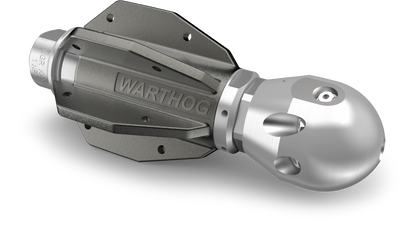

WGR Magnum Switcher 1"
WGR Magnum Switcher 1"
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD

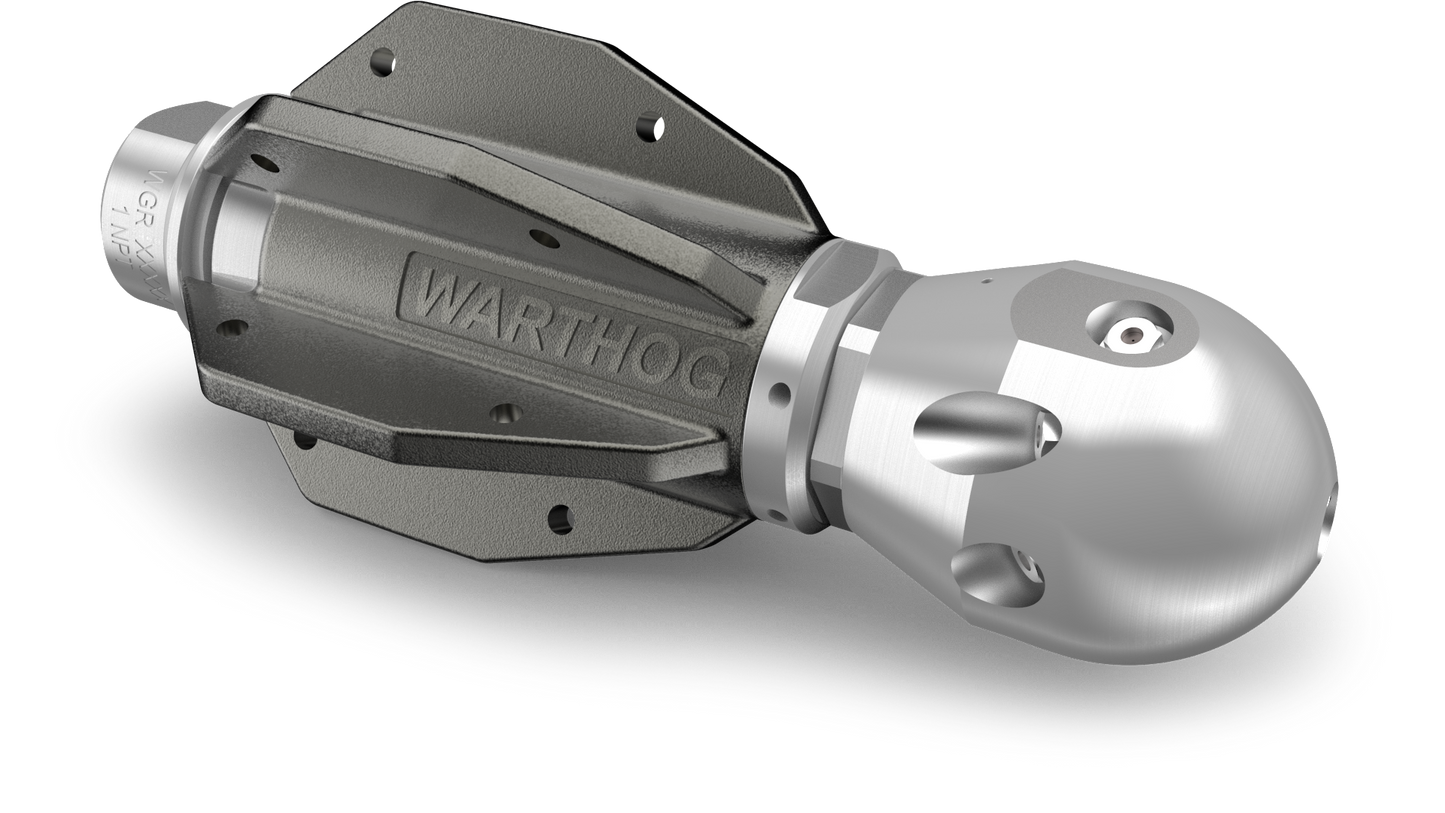

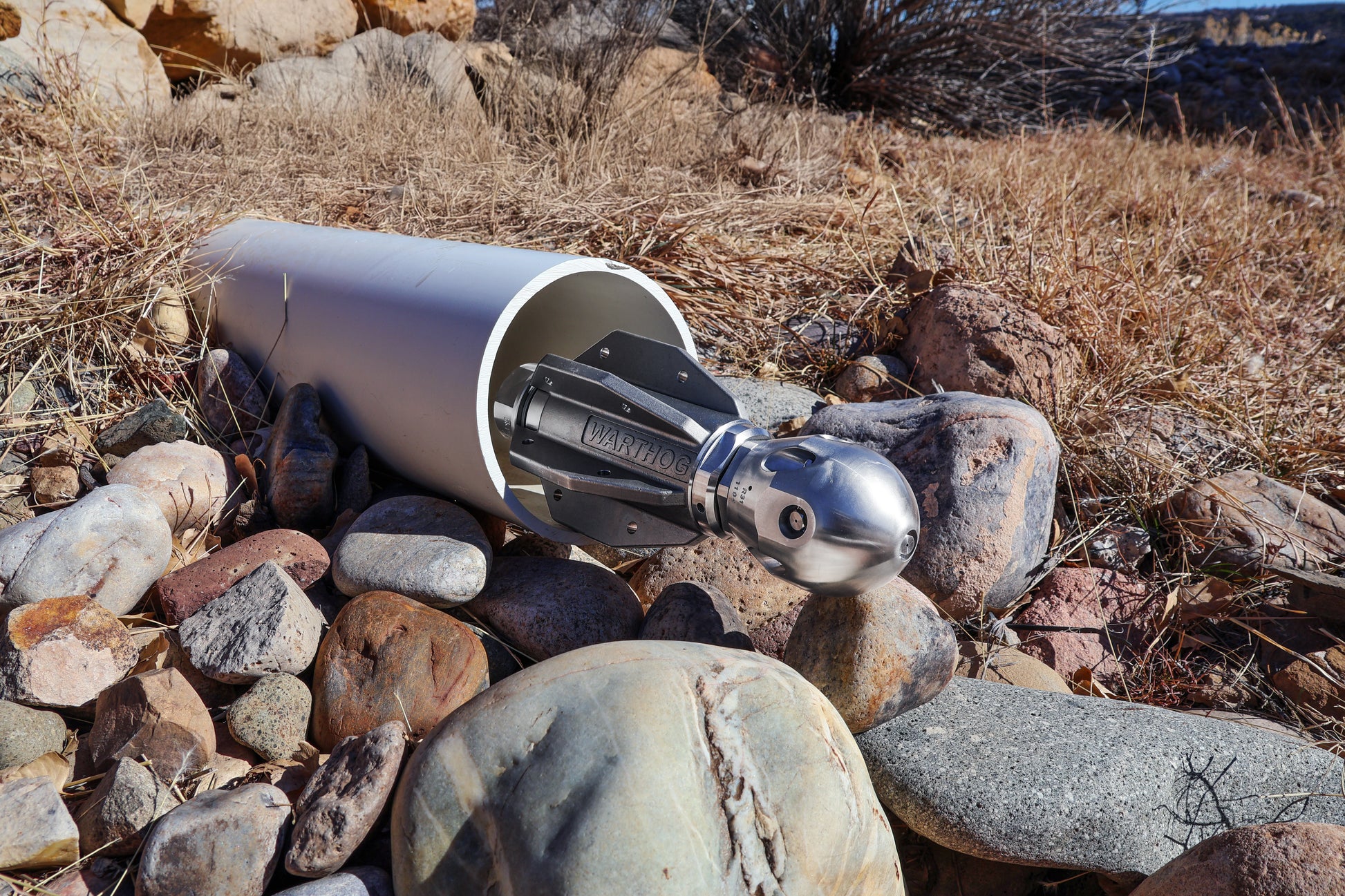

Designed for 8-36" pipes, the WGR Magnum is the most durable, versatile, and long-lasting nozzle equipped to handle recycled water. The WGR Magnum features six thick fins and specialty head options to deliver superior pulling, maneuverability, and cleaning results.

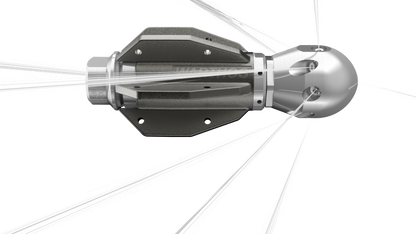

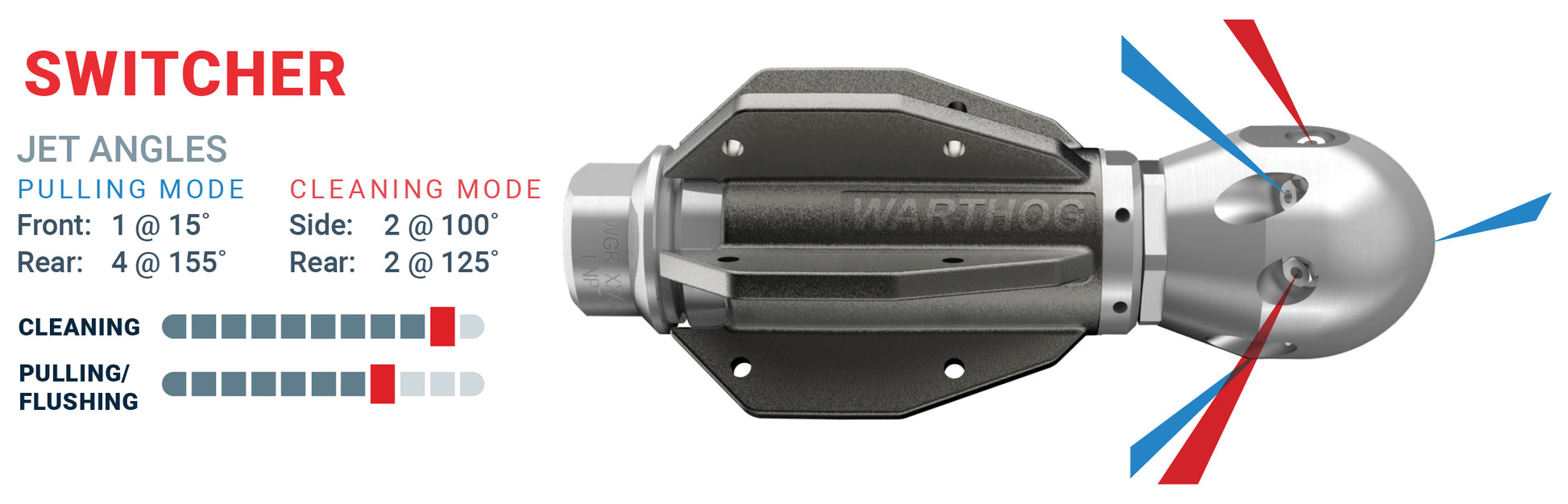

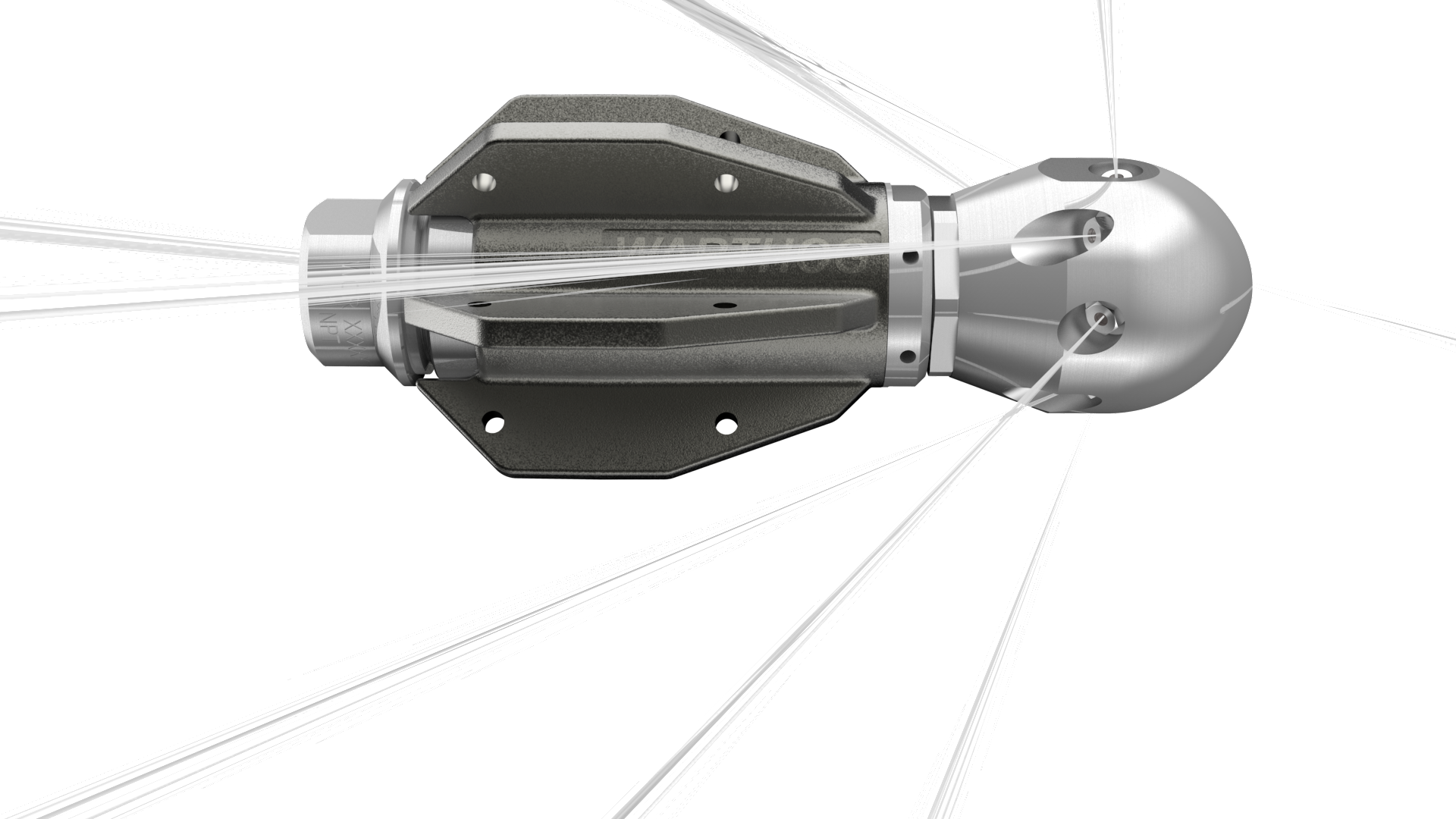

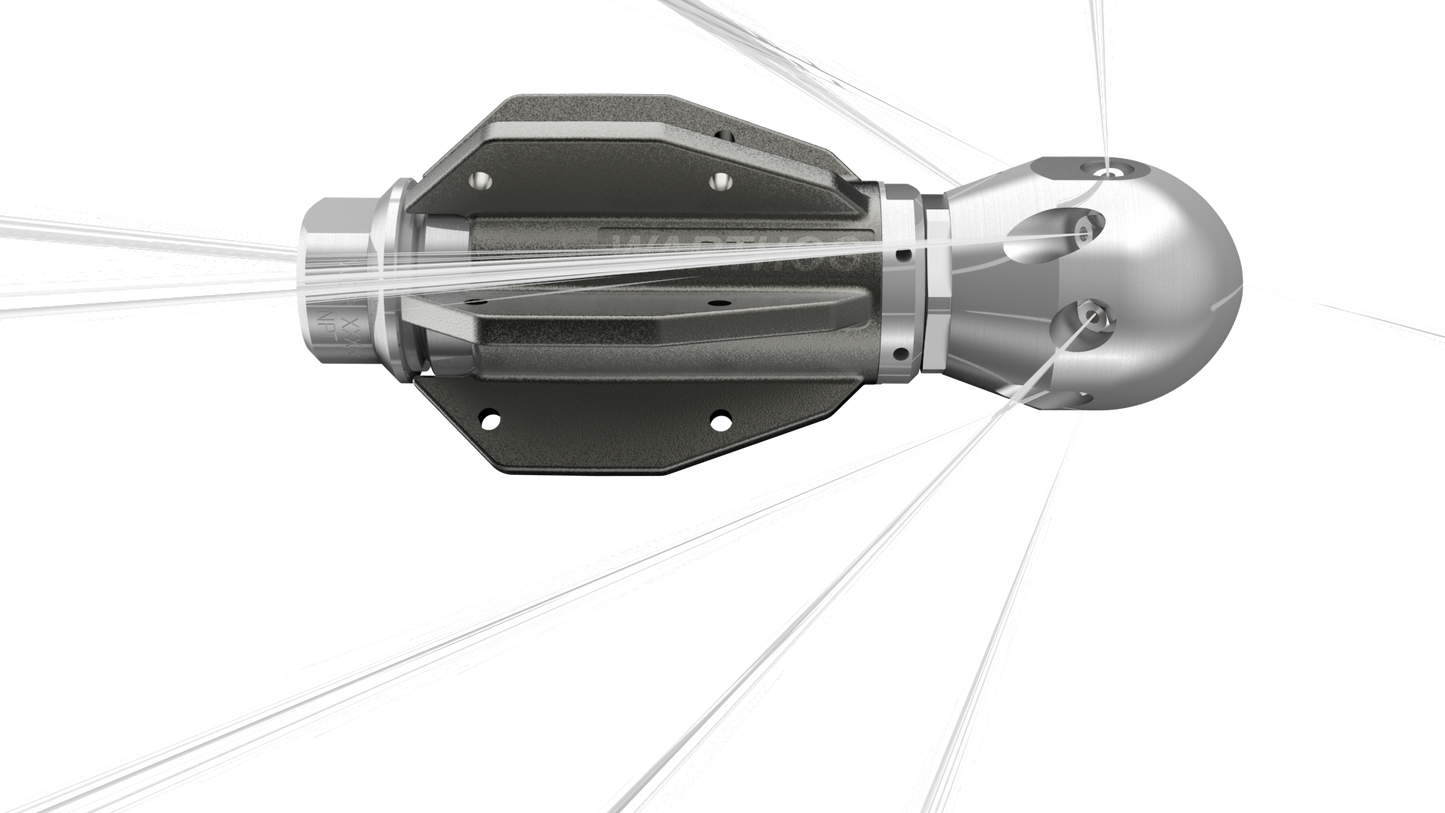

Like two tools in one, this Switcher model allows full flow to be sent to cleaning jets OR towards pulling and flushing - all while the tool remains in the pipe. Operators can turn on the pulling jets to run down the pipe, then switch to descaling jets to clean and unplug, completing jobs with half the runs and less water, time, and money.
Features
Â
- Switches water between pulling and cleaning jets
- Engineered to handle recycled water
- Tool profile keeps seals protected and prevents hang-ups
- Access ports enable viscous fluid change without disassembly for easy field maintenance
- 6-fin unibody design allows steeper rear jets for max pulling/flushing
Â
Product Specifications
Pressure Range      1200-5000 psi / 85-350 bar
Flow Range         50-80 gpm / 190-303 l/min
Length            10.3 in. / 260 mm
Inlet Connection     1" BSPP (BSPP16), 1" NPT (P16)
Pipe Size           8-36 in. / 200-900 mm
Nozzle Type        CNP2
Diameter           4.5 in. / 110 mm
Weight            13 lb / 6 kg
Head Type         Switcher
Max Pressure       5000 psi / 350 bar
Recycled Water      Yes
Service Interval      1600 hr
