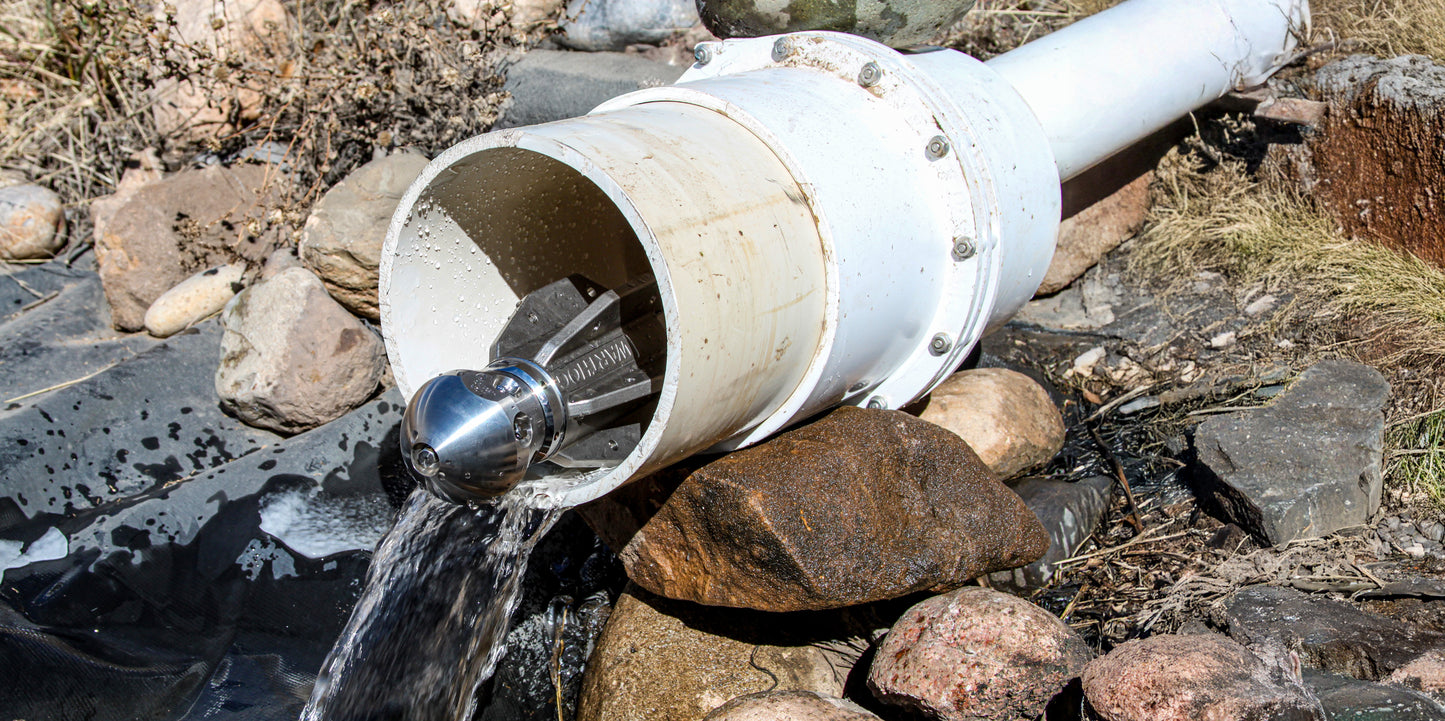

WGR Magnum Standard 1"

WGR Magnum Standard 1"

$3,757.00 USD
$3,757.00 USD
Sale Sold out

Designed for 8-36" pipes, the WGR Magnum is the most durable, versatile, and long-lasting nozzle equipped to handle recycled water. The WGR Magnum features six thick fins and specialty head options to deliver superior pulling, maneuverability, and cleaning results.



Features





  • Engineered to handle recycled water
  • Tool profile keeps seals protected and prevents hang-ups
  • Access ports enable viscous fluid change without disassembly for easy field maintenance
  • 6-fin unibody design allows steeper rear jets for max pulling/flushing



Product Specifications

Pressure Range           1200-5000 psi / 85-350 bar
Length                         10.3 in. / 260 mm
Inlet Connection         1" BSPP (BSPP16), 1" NPT (P16)
Pipe Size                      8-36 in. / 200-900 mm
Nozzle Type                CNP2
Diameter                     4.5 in. / 110 mm
Weight                        13 lb / 6 kg
Head Type                   Standard
Max Pressure              5000 psi / 350 bar
Recycled Water           Yes
Service Interval           1600 hr

In stock
